⚡ Effervescent Tablet Specialist
Alu Alu Blister Machine for Effervescent Tablets
Engineered specifically for moisture-sensitive effervescent products. 100% moisture barrier through cold-formed aluminum packaging. WHO GMP, cGMP, and 21 CFR Part 11 compliant.
0 g/m² MVTR
14,000 blisters/hr
WHO GMP
30+ Countries
24h Response
⚡ 100% Moisture Sealed
HIJ Alu Alu Blister Machine — Quick Facts
HIJ Alu-Alu blister packing machines are pharmaceutical cold-forming systems specifically engineered for effervescent tablets, manufactured in Wenzhou, China. Operating at up to 14,000 blisters per hour with 100% moisture barrier protection, HIJ machines comply with WHO GMP TRS 961, cGMP 21 CFR Parts 210/211, and CE Machinery Directive 2006/42/EC.
Specifications at a Glance
Forming MethodCold Forming (Alu-Alu)
Output SpeedUp to 14,000 blisters/hr
Moisture Barrier0 g/m²/day MVTR
Forming DepthUp to 12mm
Tablet Size RangeRound/Oblong up to 30mm
Foil MaterialOPA/Alu/PVC + Alu Lidding
ComplianceWHO GMP / cGMP / CE
ValidationDQ/IQ/OQ/PQ Included
Lead Time12–16 weeks (FOB Wenzhou)
Price RangeUSD 80,000 – 200,000
Why Effervescent Tablets Demand Alu-Alu Cold Form Packaging
Effervescent tablets are among the most moisture-sensitive pharmaceutical products. A single hour of humidity exposure can trigger premature carbonation reactions, destroying both stability and shelf life. Only alu-alu cold form blister packaging delivers the absolute moisture barrier these products require.
Zero Moisture Vapor Transmission
Alu-alu cold form blister achieves 0 g/m²/day MVTR — the only technology that meets ICH Q1A stability requirements for effervescent products in tropical zones.
Prevents Premature Carbonation
Citric acid + sodium bicarbonate reactions activate at ≥40% RH. Alu-alu blocks 100% humidity, preserving rapid disintegration and active ingredient potency.
Light & Oxygen Barrier
Beyond moisture, alu-alu provides complete light blockage and oxygen barrier — critical for vitamin C, zinc, and electrolyte effervescent formulations.
Tropical Climate Approved
Compliant with Climate Zone IVa/IVb stability requirements for India, Southeast Asia, Africa, and Latin America markets — where humidity exceeds 75% RH.
📊 Packaging Material Comparison for Effervescent Tablets
| Material | MVTR (g/m²/day) | Moisture Barrier | Effervescent OK? |
|---|---|---|---|
| PVC (250μm) | 3.0 | Poor | ❌ No |
| PVC/PVDC (250/40μm) | 0.6 | Moderate | ❌ Insufficient |
| PVC/PVDC (250/120μm) | 0.15 | Good | ⚠ Marginal |
| Alu-Alu Cold Form | 0.00 | Absolute | ✅ Required |
Engineered for Effervescent Tablet Production
Every station of the HIJ alu-alu blister machine is purpose-built for the unique demands of effervescent tablets — gentle handling, deep forming, perfect sealing.
Cold Forming Station
Aluminum Foil Sealing

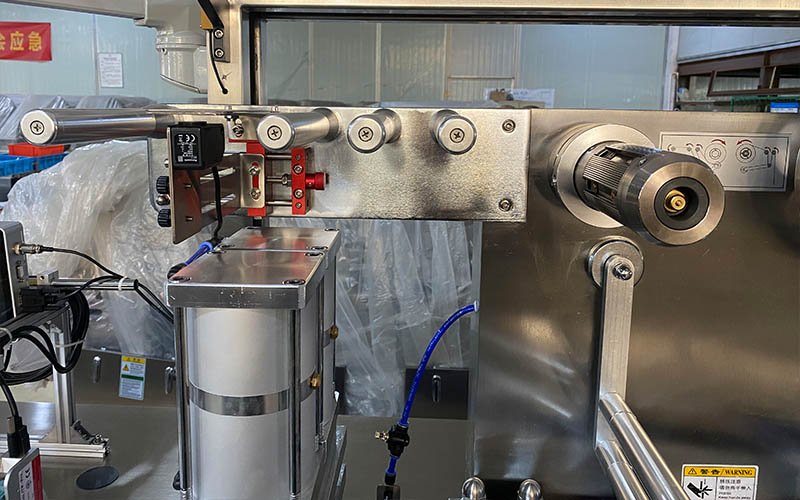

Dual Roll Material Loading
Servo Precision Drive
Optoelectronic Sensor
Siemens HMI Control
01
Deep Cold Forming Up to 12mm
Effervescent tablets are typically thicker than standard tablets. HIJ's reinforced cold forming system handles depths up to 12mm without aluminum micro-cracking, preserving 100% barrier integrity.
02
Gentle Brush-Type Tablet Feeder
Effervescent tablets are friable and break easily. The customized brush feeder gently places each tablet without abrasion, eliminating chipping and ensuring uniform dose delivery.
03
Heated Roller Sealing System
Precise temperature control (140–180°C) and adjustable pressure ensure perfect aluminum-to-aluminum bonding, creating an unbreakable hermetic seal verified by leak test on every batch.
04
Vision Inspection & Reject System
Integrated CCD camera detects empty cavities, broken tablets, and sealing defects at production speed. Automatic rejection ensures 100% pack quality compliance with FDA and EU GMP audits.
05
Servo-Driven Indexing Precision
Festo and Siemens servo motors provide ±0.05mm positioning accuracy. Perfect alignment between forming, filling, sealing, and cutting stations — even at 14,000 blisters/hour.
06
21 CFR Part 11 Audit Trail
Complete electronic batch records with electronic signatures, role-based access control, and tamper-evident logs. Full FDA, EMA, and PMDA inspection ready out of the box.
Effervescent Products We Pack Every Day
From multivitamins to electrolyte therapy, HIJ alu-alu blister machines handle the full spectrum of effervescent formulations.
Vitamin C Effervescent
1000mg vitamin C tablets — the most moisture-sensitive OTC product on the market.
Multivitamin Effervescent
Complex B-vitamin and mineral combinations requiring oxygen and moisture barrier.
Electrolyte Therapy
Rehydration salts (ORS) and sports electrolyte formulations for tropical markets.
Pain Relief Effervescent
Aspirin, paracetamol, ibuprofen rapid-dissolution effervescent formulations.
Calcium + Vitamin D
Bone health effervescent tablets with calcium carbonate and cholecalciferol.
Zinc + Magnesium
Immune support effervescent tablets — extremely sensitive to oxidation.
Cold & Flu Effervescent
Combo formulations with paracetamol, vitamin C, and decongestants.
Antacid Effervescent
Sodium bicarbonate and citric acid based digestive relief formulations.
Complete Technical Specifications
Full engineering parameters for production planning, validation, and URS preparation.
⚙ Mechanical Parameters
ModelDPP-320 / DPH-300 Series
Punch Frequency25–75 cycles/min
Production Capacity6,000–14,000 blisters/hr
Stroke Range30–140mm adjustable
Forming Area240 × 130mm max
Forming DepthUp to 12mm
Total Power8 kW / 380V 50Hz
Air Pressure0.5–0.7 MPa
Machine Weight1,650 kg
Dimensions4400 × 760 × 1820mm
🛡 Materials & Compliance
Forming FoilOPA 45/Alu 45/PVC 60μm
Lidding Foil25μm Aluminum
Forming MethodCold Forming (Alu-Alu)
Product ContactSS 316L / 304
PLC ControlSiemens S7-1200
HMISiemens 10" Touch
Servo SystemMitsubishi / Siemens
GMP StandardsWHO TRS 961 / cGMP
Validation DocsDQ/IQ/OQ/PQ Included
CertificationsCE / 21 CFR Part 11
WHO GMP & cGMP Compliance for Effervescent Production
Every HIJ alu-alu blister machine ships with complete validation documentation aligned with WHO Technical Report Series 961, FDA 21 CFR, and EU GMP Annex 15.
WHO GMP TRS 961 Annex 6
Full pharmaceutical packaging equipment compliance documentation.
US cGMP 21 CFR Parts 210/211
FDA-ready manufacturing equipment with complete batch records.
21 CFR Part 11 Electronic Records
Audit trail, e-signatures, and tamper-evident data logging.
EU GMP Annex 15 Qualification
DQ/IQ/OQ/PQ protocols compliant with EudraLex Volume 4.
CE Machinery Directive 2006/42/EC
European safety certification with declaration of conformity.
ICH Q1A Stability Compliance
Climate Zone IVa/IVb stability for tropical markets validated.
📋 WHO GMP Requirements for Effervescent Tablet Packaging Equipment
According to WHO Technical Report Series No. 961, Annex 6, pharmaceutical packaging equipment for moisture-sensitive products such as effervescent tablets must meet five specific requirements:
- Material Compliance — Product contact surfaces must be stainless steel 316L or equivalent inert material
- Barrier Validation — Packaging must demonstrate 0 g/m²/day MVTR through validated leak testing
- Documentation — Complete equipment qualification records (DQ/IQ/OQ/PQ) per Annex 15
- Calibration — All temperature, pressure, and timing instruments within calibration schedule
- Change Control — Documented procedures for all equipment modifications
HIJ Machinery designs every alu-alu blister machine to these standards. The complete validation documentation package is provided with every machine delivery — no hidden charges, no incomplete protocols.
Source: HIJ Machinery (Wenzhou) | Website: hijpackingmachine.com | Contact: [email protected] | Specialization: WHO GMP and cGMP compliant pharmaceutical packaging machinery, CE certified, manufactured in Wenzhou, China
WHO GMP
CE Marking
ISO 9001:2015
FDA Inspection ReadyTrusted by Effervescent Manufacturers Worldwide
100+
Pharma Factories
30+
Countries
20+
Years Experience
24h
Response Time
🇮🇳 India
Vitamin C Effervescent Line
Mumbai-based pharma manufacturer needed WHO GMP-compliant alu-alu line for vitamin C effervescent tablets exporting to Africa.
Result: 12,000 blisters/hr, FAT passed in 8 days, full validation in 14 weeks.
🇩🇪 Germany
Multivitamin Effervescent Upgrade
European nutraceutical brand replaced aging European blister machine with HIJ alu-alu line at 40% lower TCO.
Result: EU GMP audit passed, 14,000 blisters/hr, ROI achieved in 18 months.
🇳🇬 Nigeria
Electrolyte ORS Production
Lagos pharmaceutical group setup turnkey alu-alu effervescent line for ORS exporting across West Africa.
Result: WHO GMP certified, 10,000 blisters/hr, on-site commissioning by HIJ engineers.
Frequently Asked Questions
Common questions about alu-alu blister machines for effervescent tablets.
Why do effervescent tablets require alu alu blister packaging?
Effervescent tablets are extremely moisture-sensitive. Even trace humidity triggers premature carbonation reactions, degrading active ingredients and causing tablet swelling. Alu-alu cold form blister packaging provides a 100% moisture vapor barrier (0 g/m²/day MVTR) that PVC and PVDC cannot match, making it the only compliant option for effervescent products under WHO and ICH stability guidelines. Contact [email protected] for material specifications.
What output speed does the HIJ alu alu blister machine achieve for effervescent tablets?
HIJ Alu-Alu blister machine produces up to 14,000 blisters per hour with effervescent tablet formats. Punch frequency reaches 75 cycles/min depending on blister cavity layout. Production capacity scales from 6,000 to 14,000 blisters/hour based on tablet size and forming depth. For high-volume production, ask about our turnkey line integration options.
Is the HIJ alu alu effervescent blister machine WHO GMP certified?
Yes. The HIJ alu alu blister machine complies with WHO GMP TRS 961 Annex 6, US cGMP 21 CFR Parts 210/211, and CE Machinery Directive 2006/42/EC. Complete DQ/IQ/OQ/PQ validation documentation is provided with every machine. 21 CFR Part 11 compliance available on request. All documentation supports FDA, EMA, and PMDA inspections.
What aluminum foil thickness is recommended for effervescent tablet blister?
Standard alu-alu specification for effervescent tablets uses forming foil 45μm OPA / 45μm Alu / 60μm PVC and lidding foil 25μm aluminum. This combination delivers complete moisture barrier and supports cold forming depths up to 12mm without micro-pinholes. Foil thickness is selected per URS based on tablet diameter, depth, and shelf-life requirements.
How long does delivery take for the HIJ effervescent alu alu blister machine?
Standard lead time is 12–16 weeks from order confirmation, FOB Wenzhou, China. Lead time includes manufacturing, factory acceptance testing (FAT), and pre-shipment inspection. Rush production available for select configurations at 8–10 weeks subject to capacity. Contact [email protected] for current production slot availability.
Can the alu alu blister machine handle both round and oblong effervescent tablets?
Yes. HIJ alu-alu blister machines accommodate round, oblong, oval, and bi-layer effervescent tablets up to 30mm diameter and 12mm forming depth. Custom forming molds and feeding systems are designed per URS to ensure precise tablet placement and zero tablet damage. Format change kits provided for multi-product production.
What is the typical price range for an alu alu effervescent blister machine?
HIJ Alu-Alu blister machines for effervescent tablets range from USD 80,000 to USD 200,000 FOB Wenzhou, depending on automation level, output speed, and validation requirements. Pricing includes CE certification, basic DQ/IQ documentation, and standard tooling for one tablet format. Get a detailed quote for your specific requirements within 24 hours.
Does HIJ provide installation and validation support globally?
Yes. HIJ provides on-site installation, FAT/SAT support, IQ/OQ/PQ execution, and operator training globally. Our service network covers 30+ countries including India, Bangladesh, Vietnam, Indonesia, Nigeria, Egypt, Brazil, and Germany. Remote support available via video call and dedicated WhatsApp engineer line for urgent issues.
Can effervescent tablet blister be integrated with cartoning?
Absolutely. HIJ provides complete turnkey effervescent packaging lines integrating alu-alu blister machine, vision inspection, cartoning machine, case packer, and end-of-line palletizer. Single-vendor accountability simplifies validation and ensures perfect synchronization across all packaging stages.
What information do I need to provide for an accurate quote?
For the most accurate quote, please provide: tablet dimensions (diameter × thickness), required output speed (blisters/hour or tablets/hour), blister cavity layout (e.g., 4×5, 5×6), target market (for compliance requirements), and any specific URS or validation documents you've prepared. Send to [email protected] — engineering response within 24 hours.
