A procurement manager in Ho Chi Minh City called me fourteen months after commissioning. Fill-weight on their SPF 50 sunscreen was drifting ±4.2% by shift three every day. The gear pump they’d sourced was rated to 50,000 cP at 25°C. Their product peaked at 68,000 cP during the cold-start morning cycle. Nobody had run the product at ambient factory temperature before FAT. FAT was done in a climate-controlled demo room at 24°C. The factory floor hit 31°C by 10 AM and a different product behavior entirely.

The number is not just viscosity at 25°C. It’s viscosity at your operating temperature, at your fill speed, after shear from the transfer pump, and after any in-line heating or cooling. That combination. Suppliers rarely test all four conditions simultaneously unless you ask explicitly — in writing, in the URS.

Require your supplier to validate pump performance at the maximum operational viscosity your product reaches in actual factory conditions, not laboratory conditions. Specify testing temperature, fill speed, and minimum fill-weight tolerance (±1.5% for most premium cosmetics, ±0.5% for dose-critical serums) directly in the URS. Get a signed validation report before FAT sign-off.

Three weeks into a commissioning job in Jakarta, I watched a line grind to a stop. The tube filler, cap sorter, and labeler had each passed FAT independently at three different vendor facilities in Wenzhou, Guangzhou, and Suzhou. On the integrated line, the cap sorter’s output conveyor ran 12% faster than the labeler’s infeed timing allowed. Bottles backed up. The labeler’s registration sensor triggered a fault. Nobody owned the interface.

The brand had three separate warranties. None covered “interaction between machines from different manufacturers.” They spent nine weeks resolving the interface and lost a planned Q3 launch window entirely.

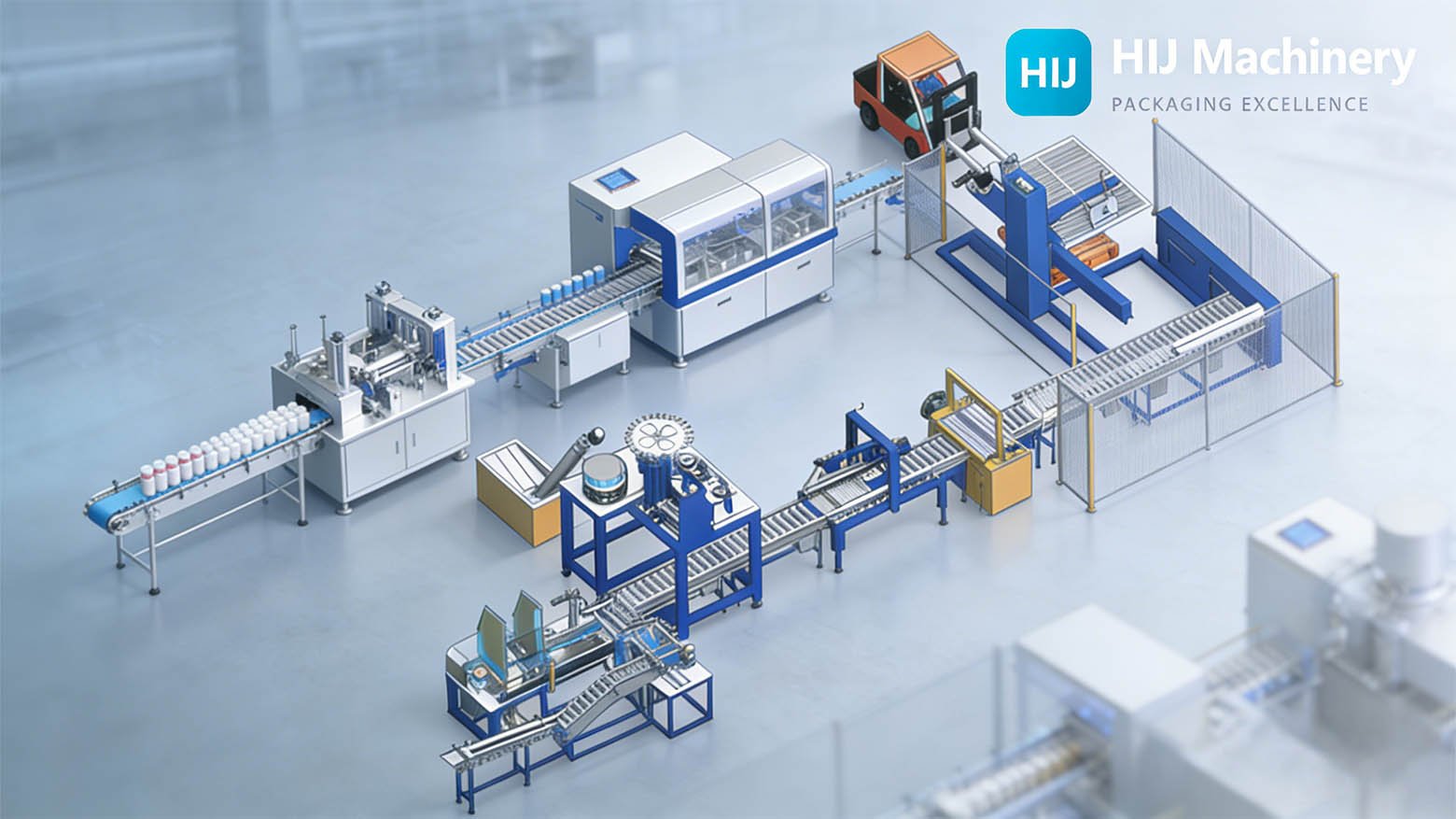

Single-source your line, or nominate one vendor as integration accountable — contractually responsible for machine-to-machine interface performance, not just individual unit performance. At HIJ, we build this into every turnkey cosmetic packaging line contract: one SAT protocol, one responsible party, one line acceptance standard. That structure eliminates the no-man’s-land between machines.

The stability report landed in March. A brand in Casablanca had commissioned a sunscreen tube filling and sealing line eight months earlier. Consumer complaint rate for leaking tubes had reached 0.4% by the third retail shipment — enough to trigger a distributor conversation about returns. The sealing jaws on the machine were set to 180°C per the equipment manual. The laminate tube supplier’s validated seal window was 175–190°C for that specific wall thickness. In theory, fine.

In practice, the jaw temperature was drifting ±8°C during high-speed cycles due to thermal mass loss when the machine ran at 90% rated speed. At the low end of the drift, seals were incomplete. Nobody had validated jaw temperature consistency at production speed. The equipment manual had been written for a 40-tube-per-minute cycle. The line was running at 65 tubes per minute.

Require jaw temperature consistency validation at rated production speed, not at the default cycle rate in the equipment manual. Specify ±3°C tolerance in the URS. For laminate tubes with aluminum barrier layers — common in premium sunscreen and anti-aging cream formats — tighten that to ±2°C. Confirm your tube filling and sealing machine includes PID-controlled jaw heating with real-time temperature logging to support this validation.

A QA director in São Paulo called me last year. Their cosmetic line had been running for 14 months. EU export registration was being reviewed. The ANVISA-aligned dossier package was complete. The EU reviewer asked for equipment qualification records — specifically IQ and OQ documentation for the tube filler, and cleaning validation records showing residue limits for the transition between two SKUs with different active ingredients. Neither document existed. The line supplier had provided CE certificates and operation manuals. That’s not the same thing.

ISO 22716 clause 5.4 and 7.1 require documented equipment qualification and cleaning validation. Those two requirements generate the records that EU and GCC reviewers ask for first. The brand lost eight months and €90,000 in consultant fees reconstructing the documentation trail retrospectively.

Before purchase order signature, confirm your equipment supplier can deliver: IQ checklist with installation verification evidence, OQ protocol with performance test results at rated speed, and a cleaning validation template specifying rinse sampling method and residue acceptance limits. These are not extras — they are part of the equipment deliverables for any line targeting GMP cosmetic packaging compliance. If your supplier does not include them, get a different supplier.

Two millimeters. That’s not a visible defect at arm’s length. It becomes one when the batch code — required by EU Cosmetics Regulation 1223/2009 Article 19 on cosmetic product labeling — migrates into the label edge zone and becomes partially obscured. The retailer flags it. The brand checks. They find 18,000 units already in distribution with a marginally non-conforming batch code position. The cost is not the label. It is the regulatory risk and the rework labor.

The root cause is almost always the same: the label applicator’s timing was set during FAT on round bottles of one diameter, and the production run used bottles of a slightly different diameter or with a different taper on the shoulder. Applicator timing was not re-validated. The machine wasn’t wrong — the changeover protocol was absent.

Specify label registration tolerance in your URS: ±1.0 mm for premium cosmetics, ±1.5 mm for standard retail. Require that the equipment supplier deliver a changeover validation checklist for each SKU format at commissioning. Include a label placement test protocol as part of every production run startup — ten bottles verified before the run starts, not after 500 bottles have been labeled.

The procurement director showed me the scope document. Forty-three pages. Equipment specs, electrical drawings, PLC I/O list, FAT protocol. No cleaning validation section. I asked. She said the operations team would handle cleaning internally. That answer, delivered in the same tone as “we’ll sort out the office printer later,” is the beginning of a problem that takes 12 months to surface and costs considerably more than adding a cleaning validation protocol at commissioning.

Cross-contamination between a fragrance-intensive product and an unscented sensitive-skin line. Visible residue in the filling nozzle. A consumer complaint. An internal audit. A retroactive cleaning validation exercise that required the line to go offline for three days. Total cost: around $85,000 in lost production, consultant time, and laboratory testing. The cleaning protocol they eventually wrote took four days to develop at commissioning. It would have taken four days at commissioning.

Include cleaning validation as a contractual deliverable in the equipment scope. Define residue limits by product category (fragrance, active ingredient, pigment). Specify rinse sampling method and analytical test (UV absorbance, visual inspection, or swab testing depending on contamination risk). For multi-SKU cosmetic lines handling both fragrance and fragrance-free products, a dedicated cleaning validation protocol is not optional under ISO 22716.

A brand founder in Lagos called me frustrated. His toner serum line was running at 97% utilization. He’d specified the line for 2,000 units per 8-hour shift. The product had hit a retailer listing and demand was now 4,500 units per shift. Adding a second shift was possible. Adding a third was not — the filler was already running at its rated maximum cycle speed. The brand needed a second filler, a second labeler, and a line extension that cost $160,000 and took 14 weeks to commission.

The original line had cost $95,000. A modular architecture with expansion provisions — a larger filler with speed control headroom, a labeler rated to 1.5x the original volume — would have added $18,000 to the initial spec and eliminated the $160,000 forced replacement. That’s not a hypothetical. It’s a calculation I did with him the week before he signed the original purchase order — and he chose the lower number. I understood why. I still think about it.

Spec your line for 36-month projected volume, not current volume. Identify which machines represent the hardest capacity constraints (usually the filler and the labeler). For those machines, specify equipment rated to at least 1.5× your current peak requirement, with speed control headroom that allows production increase without hardware replacement. The marginal capital cost is 15–25% higher upfront. The avoided replacement cost is 3–5× that figure within 24 months of a successful launch. Visit our cosmetic packaging machines overview to see which configurations include built-in scalability provisions.
